TASCAM

collapse expand iconDescription

The TASCAM DR-05XP is a compact and versatile handheld recorder designed to deliver professional-quality audio for a wide range of applications. Whether you're a musician capturing song ideas, a videographer recording high-quality sound for video, or a journalist conducting interviews, the DR-05XP ensures pristine recordings with its 32-bit float recording mode. This eliminates distortion and clipping, so you'll never have to worry about setting audio levels, allowing you to focus entirely on the moment.

Capture Clear, Distortion-Free Audio

The DR-05XP features omnidirectional condenser microphones capable of handling sound pressure levels up to 125dB SPL, making it ideal for capturing everything from quiet conversations to loud performances. Its low-cut filter options reduce background noise, while the expansive frequency range ensures crisp, natural sound in any setting. With support for 44.1kHz, 48kHz and 96kHz sampling rates at 32-bit, 24-bit or 16-bit resolution, the DR-05XP adapts to your audio needs effortlessly.

Versatility for Every Scenario

This recorder is the perfect solution for musicians, content creators, and field recordists. Musicians benefit from features like a built-in chromatic tuner, reverb effects, and overdubbing capabilities, making it a powerful songwriting tool. For videographers, the Auto Tone output ensures smooth integration with DSLR cameras, while the tripod mount offers stability for capturing high-quality audio alongside your visuals. Its stereo mini jack input allows connection to external microphones or line-level sources, expanding its capabilities for professional use.

Simple, Portable, and Powerful

The DR-05XP offers a streamlined interface for one-handed operation, with an intuitive backlit LCD screen for clear navigation in any environment. Its 2-in/2-out USB-C audio interface turns the DR-05XP into a portable recording studio, letting you capture audio directly to your computer. With support for microSDXC cards up to 512GB, the DR-05XP provides ample storage for lengthy recordings, whether you're documenting an event, capturing field sounds, or recording a podcast.

Designed for Life on the Go

Compact and lightweight, the DR-05XP fits effortlessly into your bag and is powered by two AA batteries, offering up to 17.5 hours of continuous use. A built-in speaker lets you check your recordings without needing headphones, while the durable design ensures reliability wherever you take it. From vlogs and interviews to concerts and nature recordings, the DR-05XP makes capturing high-quality sound straightforward and hassle-free.

Everything You Need in one Device

With its exceptional sound quality, ease of use, and robust feature set, the TASCAM DR-05XP is the ideal portable recorder for creators and professionals alike. Compact yet powerful, it delivers professional-grade results while simplifying the recording process, making it an essential tool for anyone who values high-quality audio in a portable format.

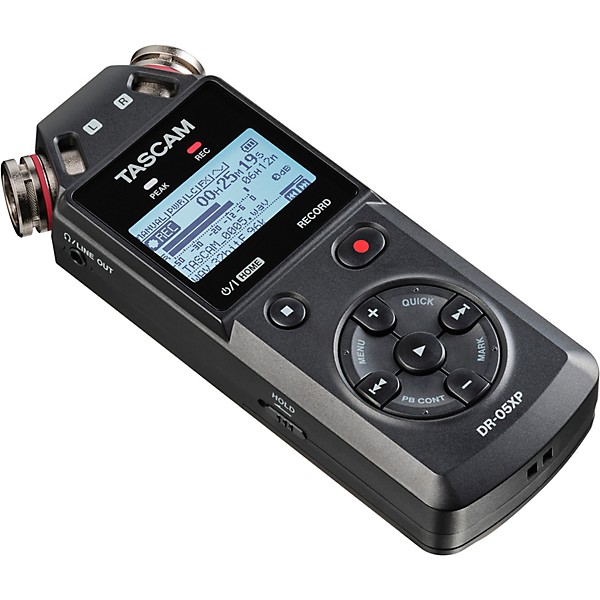

TASCAM DR-05XP 32-bit Float Audio Recorder
TASCAM DR-05XP 32-bit Float Audio Recorder
TASCAM DR-05XP 32-bit Float Audio Recorder

collapse expand iconFeatures

  • Stereo recording: field recording, dictation, musicians and vlog
  • 32-bit float/24bit/16bit, 96kHz/48kHz/44.1kHz
  • Omnidirectional condenser mics, up to 125dB SPL
  • 2-in/2-out USB audio interface
  • Approx. 17.5 hours battery operation (alkaline)
  • Additional Features
  • microSDXC (uo to 512GB) cards can be used as recording media
  • USB Type-C port
  • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Long recordings as MP3 files possible
  • Various recording function (Auto rec, Self timer, Pre rec)
  • Overdubbing function
  • Limiter and Peak reduction
  • Three low cut filter levels (40/80/120Hz)
  • Auto Tone output for using with DSLR camera
  • Reverb effect for vocal and instrument resonance
  • Mark function
  • 128 x 64-pixel graphic LCD with backlight
  • Tripod attachment screw-hole built into the unit
  • Stereo mini line output / Headphone output
  • Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
  • Playlist function
  • Built-in monaural speaker with an output of 0.3W
  • A chromatic tuner is equipped which is helpful for practicing musical instruments

collapse expand iconSpecs

Recorder Specifications
  • Recording Media/File Systems: microSD, microSDHC, and microSDXC cards (up to 512 GB)
  • Recording/Playback Formats: WAV (BWF)
  • Sampling Frequency: 48kHz, 96kHz
  • Quantization Bit Depth: 24-bit/32-bit float
  • Maximum Number of Input Channels: 2
  • Maximum Number of Recordable Tracks: 2
Analog Audio Input/Output RatingsMIC/EXT IN Jack
  • Connector: 1/8" stereo mini jack
  • Input Impedance: 18 kohm (plug-in power off) / 2 kohm (plug-in power on)
  • Nominal Input Level: -20dBV
  • Maximum Input Level: -4dBV
PHONES/LINE OUT Jack
  • Connector: 1/8" stereo mini jack
  • Output Impedance: 12 ohm
  • Nominal Output Level: -14dBV (10 kohm loaded)
  • Maximum Output Level: +2dBV (10 kohm loaded)
  • Working Impedance: 16 - 250 ohm
  • Built-in Speaker: Output: 0.3W (monaural)
USB
  • Connector: USB Type-C
  • Format: USB 2.0 High Speed Mass Storage Class, USB 1.1 Full Speed Audio Class
USB Audio
  • Sampling Rate: 44.1/48kHz
  • Quantization Bit Depth: 24-bit
  • Inputs: 2 channels (output from the unit)
  • Outputs: 2 channels (input to the unit)
Audio Performance
  • Frequency Response
  • 20–20kHz +0/āˆ’1dB (MIC/EXT IN to LINE OUT, 44.1kHz, JEITA)
  • 20–22kHz +0/āˆ’1dB (MIC/EXT IN to LINE OUT, 48kHz, JEITA)
  • 20–40kHz +0/āˆ’1.5dB (MIC/EXT IN to LINE OUT, 96kHz, JEITA)
  • Total Harmonic Distortion (THD+N): 0.01% or less (MIC/EXT IN to LINE OUT, 44.1/48/96kHz, JEITA)
  • Recording Duration (Examples)
  • WAV 16-bit, 44.1kHz (Stereo): 45:20 (32 GB), 181:20 (128 GB)
  • WAV 24-bit, 96kHz (Stereo): 15:04 (32 GB), 60:16 (128 GB)
  • WAV 32-bit float, 96kHz (Stereo): 11:20 (32 GB), 45:20 (128 GB)
Operating System Requirements
  • Windows: Windows 11, Windows 10 (64-bit)
  • Mac: macOS 15 Sequoia, macOS 14 Sonoma
  • iOS/iPadOS: iOS 18, iPadOS 18; iOS 17, iPadOS 17
General
  • Power: 2 AA batteries (alkaline or NiMH), USB bus power (5V/0.5A), or TASCAM PS-P520U AC adapter (sold separately)
  • Power Consumption: 1.7W (maximum)
  • Battery Operation Time (Continuous Use)
  • WAV, 96kHz, 32-bit float: Approx. 15.5 hours (alkaline), 12.5 hours (NiMH)
  • MP3, 44.1kHz, 128 kbps: Approx. 14.5 hours (alkaline), 11.5 hours (NiMH)
  • Weight: 0.384 lb. including batteries, 0.278 lb. without batteries
  • Operating Temperature Range: 32–104 °F
  • Dimensions: 2.39ā€ x 5.61ā€ x 1.07ā€, including protrusions

collapse expand iconWarranty

Tape machines - 90 day warranty; one year parts warranty.
Warranty terms vary. Check with manufacturer for specific product warranty.
