Sennheiser

collapse expand iconDescription

The Sennheiser XSW wireless in-ear monitoring system gives you an affordable, professional way to take control of how you hear yourself on stage. Engineered by audio experts Sennheiser, this all-in-one system uses professional-grade UHF wireless technology for rock-solid signal and stunning detail. An intuitive rackmountable transmitter with simple interface lets you dial in your ideal monitor mix in seconds.

Professional UHF Wireless for Reliable Monitoring

The XSW IEM system operates in the UHF frequency range, ensuring a strong, interference-free signal between the transmitter and bodypack receiver. UHF wireless is the professional standard for live performance monitoring, providing extended range and fidelity for hearing every nuance of your performance.

All-in-One Design is Ready to Go Right Out of the Box

This complete wireless IEM system comes with everything you need to start using in-ear monitors, including a transmitter, bodypack receiver, earbuds and rackmount kit. The rugged metal transmitter mounts easily in a rack and features an intuitive interface with LED display, making it simple to set up and adjust your monitor mix on the fly. The compact bodypack receiver clips to your belt or strap for freedom of movement, while delivering full-range sound to the included earbuds.

Dial in Your Ideal Mix With Onboard EQ and Limiter

Shape your monitor sound to perfection using the integrated 3-band EQ and limiter on the transmitter. The EQ lets you adjust levels for bass, midrange and treble frequencies to create a mix tailored to your needs. Engage the limiter to prevent sudden volume spikes from overloading the earbuds. There's also a Focus mode to increase the level of a single audio source in your mix, such as vocals or a particular instrument.

Rugged, Road-Ready Design Built to Last

From the solid metal housing of the transmitter to the high-impact bodypack receiver, the XSW IEM system is built for life on the road. It delivers the quality and reliability Sennheiser is known for in an affordable package designed for small to mid-size stages. Take control of your monitor mix and elevate your live performance with this professional yet practical wireless IEM solution.

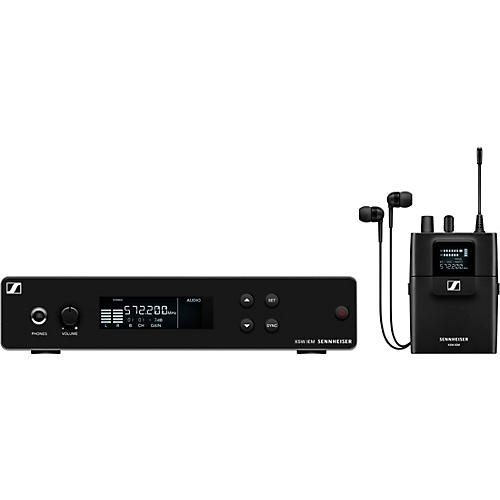

Sennheiser XSW IEM Wireless In-Ear Monitoring System Band B
Sennheiser XSW IEM Wireless In-Ear Monitoring System Band B
Sennheiser XSW IEM Wireless In-Ear Monitoring System Band B

collapse expand iconFeatures

  • Complete starter set for in-ear monitoring
  • Reliable, easy-to-manage wireless connection in the professional UHF range
  • Full control with flexible audio modes
  • Focus mode to balance your personal mix
  • Advanced features like EQ and limiter
  • Easy frequency presets or detailed manual control
  • Infrared sensor to sync multiple receivers easily to one transmitter

collapse expand iconSpecs

  • Variant A frequency range: 476–500mHz
  • Variant B frequency range: 572–596mHz
  • Variant C frequency range: 662–686mHz
  • Variant E frequency range: 823.2–831.8mHz
  • Variant K: 925.2–937.3mHz
  • Variant A, B, C and E output power: 30mW
  • Variant K output power: 10mW
  • Modulation: FM stereo
  • Switching bandwidth: Up to 24mHz
  • Nominal/peak deviation: ±15kHz/±24kHz
  • Antenna output BNC socket: 50 ohm
  • AF frequency response: 45Hz to 15kHz
  • AF input: BAL AF IN L (I) + MONO/ BAL AF IN R (II) - 2x XLR 3" and 1/4" jack combo socket, electronically balanced
  • Total harmonic distortion (THD): <0.9 %
  • Signal-to-noise ratio (at nominal load and peak deviation): ≥88dB
  • RF Modulation: Wideband FM
  • AF Signal-to-noise ratio  (1 mV, peak deviation): - ≥88dB
  • Total harmonic distortion (THD): ≤ 1%
  • High Boost (EQ): +10dB at 13kHz
  • Limiter: -10dB
  • AF frequency response: 45Hz to 15kHz
  • Cross talk (50Hz–10kHz): Typically 45dB
  • Temperature range: 0 °C to +40 °C
  • Power supply: 2 AA batteries, 1.5V
  • Nominal voltage: 3V battery
  • Operating time: Approx. 6 hr. (depending on volume level)
  • Dimensions: Approx. 3.54" x 2.75" x 1.02"
  • Weight (including batteries): Approx. 0.24 lb.
  • IE 4 in-ear headphones transducer: Dynamic
  • Frequency response: 40–20.000Hz
  • SPL (1 kHz, 1 mW): 106dB
  • Nominal impedance: 6 ohm
  • Cable length: 55.11"
  • Connector: 1/8" stereo plug, gold-plated
  • Temperature: –5 °C (23 °F) to +50 °C (122 °F)
  • Includes:
    • XSW IEM EK Stereo Receiver
    • XSW IEM SR Stereo Transmitter
    • XSW BNC Antenna
    • IE 4 In-ear headphones
    • 2 AA batteries
    • XSW Rack Mount Kit
    • NT 12-5CW Power Supply and Country Adapter
    • Quick Guide
    • Safety Guide
    • Compliance Sheet
    • Frequency Table

    collapse expand iconWarranty

    2 year warranty, including the Evolution wireless. Sennheiser Evolution wired mics have a 10 year warranty.
