collapse expand iconDescription

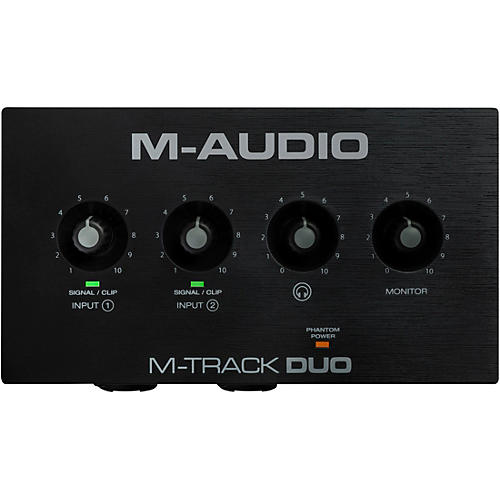

The M-Audio M-Track Duo USB audio interface delivers professional-quality recordings with ease. Featuring two Combo Crystal Preamps and versatile input switching, the Duo captures high-resolution 48kHz audio from all your gear with exceptional clarity. Its compact, durable design lets you throw it in your bag and create wherever inspiration strikes.

Crystal Preamps Provide Pristine Recordings

The M-Track Duo's two combo XLR/TRS inputs are equipped with M-Audio's renowned Combo Crystal preamps, providing a clean, transparent signal path for microphones and line-level sources. With up to 48V of phantom power, the Duo supports condenser mics for rich recordings. A dedicated instrument/line switch lets you optimize the input for guitars, basses, keyboards and more.

Ultraportable for Music On the Move

Weighing under 1 pound, the bus-powered M-Track Duo is the perfect companion for mobile recording. Its compact, rugged enclosure slips easily into any laptop bag or gear case, so you can capture inspiration wherever it strikes. The Duo connects directly to your Mac, PC or iOS device via USB, with no need for an external power supply.

Bundled Software Provides a Complete Solution

The M-Track Duo comes with all the software you need to start recording, editing and producing music right out of the box. M-Audio's exclusive recording and editing app lets you create demos, podcasts and more with drag-and-drop simplicity.

M-Audio M-Track Duo 2-Channel USB Audio Interface
M-Audio M-Track Duo 2-Channel USB Audio Interface
M-Audio M-Track Duo 2-Channel USB Audio Interface

collapse expand iconFeatures

  • 2-channel USB recording interface for Mac and PC
  • 2 Combo inputs with Crystal Preamps amazing audio quality
  • Dedicated switches to enable any microphone, instrument or line level device
  • +48V phantom power for connecting studio condenser microphones
  • Stereo 1/4" outs; 1/4" headphone out with independent level controls
  • USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
    • Included
    • MPC Beats
    • AIR Music Tech Xpand!2
    • Eleven Light guitar amp plug-ins
    warning

    WARNING: This product can expose you to chemicals including Diisononyl phthalate (DINP), which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

    collapse expand iconSpecs

    Mic Input (balanced XLR)
    • Frequency Response: 20Hz–20kHz (+0.1dB)
    • Signal-to-Noise Ratio:109dB (A-weighted)
    • THD+N: 0.003% (min. gain, 0dBu out, A-weighted)
    • Preamp EIN: -128 dBu (max. gain, 40 ohm source, A-weighted)
    • Gain Range:
    • Direct Mono: 0dB to +54dB
    • Direct Stereo: 6dB to +60dB
    Line Input (balanced 1/4” [6.35 mm] TRS)
    • Frequency Response: 20Hz–20kHz (+0.1dB)
    • Sensitivity: –43dBu
    • THD: 0.002% (min. gain, 0dBu out, A-weighted)
    Gain Range
    • Direct Mono: –10dB to +44dB
    Direct Stereo: –4dB to +50dBInstrument Input (unbalanced 1/4” [6.35 mm] TS)
    • Frequency Response: 20Hz–20kHz (+0.1dB)
    • THD+N0: .005% (min. gain, 0dBu out, A-weighted)
    • Input Impedance: 1 mohm
    • Gain Range:
    • Direct Mono: –10dB to +44dB
    • Direct Stereo: –4dB to +50dB
    Main Outputs, L and R (impedance-balanced 1/4” [6.35 mm] TRS)
    • Frequency Response: 20Hz–20kHz (+0.1dB)
    • Signal-to-Noise Ratio: 109dB (A-weighted)
    • THD: 0.002% (0dBu out, A-weighted)
    • Max Output Level: +4dBu
    Headphone Output (1/4" [6.35 mm] TRS)
    • Power: 60mW/Ch, 32 ohm
    • Frequency Response: 20Hz–20kHz (+0.5dB)
    • THD+N: 0.02% (A-weighted)
    • Signal-to-Noise Ratio: 100dB (A-weighted)
    General
    • Power: USB bus powered
    • Dimensions (WxDxH): 7.5" x 4.4" x 2.1" or 19.1 x 11.1 x 5.5cm
    • Weight: .80 lb., .365kg
