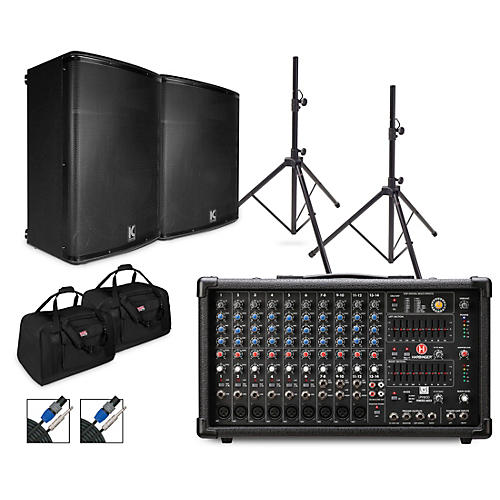

This Harbinger LP9800 powered mixer comes with two Kustom KPX passive speakers (your choice 12" or 15"), stands, cables and tote bags.

LP9800 14-Channel Mixer
The LP9800 14-channel powered mixer provides the power and flexibility for gigging, rehearsing or jamming. With 800 watts of clean, articulate power, you can now drive stereo setups or split out for mains and monitors. Flip a switch and it transforms into a powerful mono bridge amp.

The nine XLR mic inputs and 14 total line inputs allow you to use the LP9800 to mix and manage the sound for an entire band. Extra features include a performance-ready collection of 24-bit digital FX with customizable parameters, as well as rumble filters, -25dB pad and dual 9-band graphic EQs with LED lights to indicate your settings, easy to see in a dark club. Line outputs allow connections to powered speakers, making the LP9800 ready for any performance situation. Plus, its rugged construction and reliability means you can depend on it year after year.

KPX Passive Speakers
The Kustom KPX passive speaker cabinets pack a lot of value into an inexpensive package. These full-range cabinets offer fantastic audio quality. A specially voiced crossover maintains clear separation of frequencies for crisp detailed sound reproduction. The cabinets' woofers deliver punchy low frequencies, while the horns reproduce all the clear high-end tones. KPX passive speakers are equipped with two parallel input/output jacks which allow additional passive cabinets to be connected (do not connect to powered speaker cabinets). The KPX series has been designed to withstand years of active duty with sturdy metal grilles, stout handles and a high-quality, heavy-duty finish. The cabs also offer a 1-3/8" polemount insert.
Harbinger LP9800 Powered Mixer Package With Kustom KPX Passive Speakers, Stands, Cables and Tote Bags 12" Mains
Harbinger LP9800 Powered Mixer Package With Kustom KPX Passive Speakers, Stands, Cables and Tote Bags 12" Mains
Harbinger LP9800 Powered Mixer Package With Kustom KPX Passive Speakers, Stands, Cables and Tote Bags 12" Mains

collapse expand iconFeatures

LP9800 Powered Mixer
  • 800-watt amplifier with Stereo, Main/Monitor and Mono Bridge power modes
  • Studio-grade DSP effects with performance-ready presets
  • 9 XLR inputs with 48V phantom power
  • 6 XLR mic/line channels with -25 dB pad and clip indicator
  • 3 XLR mic/stereo line channels
  • -25dB pad and Rumble Filter on channels 1 through 6
  • Dual 9-band graphic EQ with LEDs
  • 3-band EQ per input
  • FX Send and AUX send per input
  • 5-segment LED meters per power amp channel
  • Quick Parameter adjustment to dial in reverbs, delays and chorus
  • RCA AUX In and AUX Out
  • Line outputs connect powered speakers or monitors
  • Rugged construction with protective corners and covering
KPX Passive Speakers
    Speaker configuration
    • Active/passive: Passive
    • Type: 2-Way full range
    • LF driver: 12" or 15"
    • MF driver: Not applicable
    • HF driver: 1.75" Titanium
    Power capacity
    • 8 Ohms program/peak: 150W/300W
    • 4 Ohms program/peak:
    Audio
    • Frequency response: 60Hz–20kHz (12"), 55Hz–20kHz (15")
    • Coverage pattern: 90 x 40
    • Max SPL: 96dB (12"), 97dB (15")
    Inputs
    • XLR: Not applicable
    • TRS: Not applicable
    • TS: 1/4"
    • RCA: Not applicable
    • SPEAKON: Not applicable
    Output/thru
    • XLR: Not applicable
    • TRS: Not applicable
    • TS: 1/4"
    • RCA: Not applicable
    • SPEAKON: Not applicable
    Enclosure
    • Cabinet material: Polyptopelene
    • Dimensions (HxWxD)
    • 12" - 21.6" x 15.39" x 15.55"
    15" - 24.2" x 18.15" x 17"
  • Weight
  • 12" - 34.4 lb.
  • 15" - 44.5 lb.
    • warning

    WARNING: This product can expose you to chemicals including Lead and Diisononyl phthalate (DINP), which are known to the State of California to cause cancer, and Lead and Bisphenol A (BPA), which are known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    collapse expand iconSpecs

    LP9800 Powered Mixer

    • Input Channels
      Microphone Inputs: -60dBu
    • Frequency Response: 20Hz–20KHz(±1dB)
    • Gain: 36dB
    • Line Inputs: -50dBu
    • Frequency Response: 20Hz–20KHz(±0.5dB)
    • Gain: 24dB
    • Impedance
    • Microphone Input: 2.2 kohm balanced/ 1.1 kohm unbalanced
    • All Other Inputs: 47 kohm unbalanced
    • Tape Out: 120 ohm
    • All Other Outputs: 100 ohm
    Kustom 15" Passive Speaker
    • Power Handling: 150 watts
    • Speaker: 15" with Neo compression driver
    • Input/Output: 1/4"
    • Frequency Response: 55Hz–20kHz
    • Sensitivity (SPL): 97dB 1W/1M
    • Crossover Frequency: 2.5kHz
    • Dimensions (HxWxD): 24.17" x 18.15" x 17"
    • Weight: 44.5 lb.
    Kustom 12" Passive Speaker
    • Power Handling: 150 watts
    • Speaker: 12" with Neo compression driver
    • Input/Output: 1/4"
    • Frequency response: 60Hz–20kHz
    • Sensitivity (SPL): 96dB 1W/1M
    • Crossover Frequency: 39kHz
    • Dimensions: 21.6" x 15.5" x 15.655"
    • Weight: 34 lb.
